Product Description

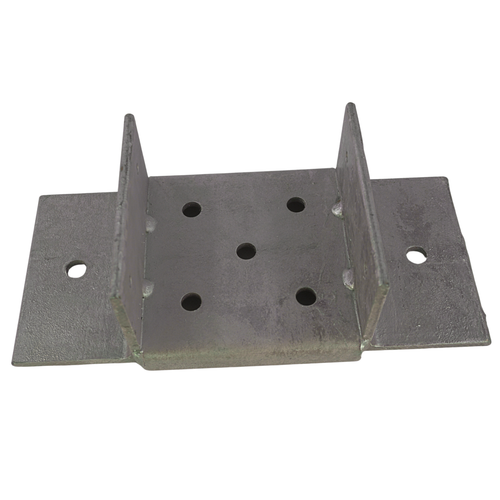

Powder-Coated Structural Steel 6x6 Post Base

This heavy-duty post base is designed to securely anchor 6x6 wood posts to concrete footings, offering both stability and moisture protection. Constructed from 1/4" thick powder-coated steel, this base ensures long-lasting durability and superior performance. It includes a 3/4" stand-off base to elevate the wood posts above concrete surfaces, preventing moisture-related damage and promoting ventilation.

Specifications:

• Material: High-strength structural steel
• Finish: Powder-coated for enhanced resistance to corrosion and weathering. Available in Black Powder Coat and Hot Dip Galvanized finishes.

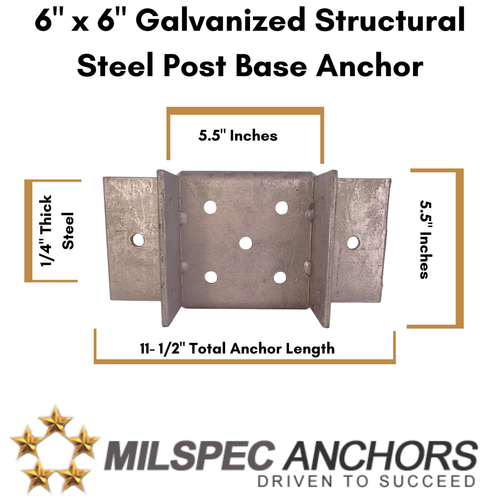

• Dimensions:
  • Height: 3-1/2 inches
  • Width: 11-1/2 inches
  • Length: 5-1/2 inches
  • Rise: 3/4 inch from surface
• Post Fit: Accommodates 6x6 finished/pressure treated lumber (5.5 x 5.5 inches) and also suitable for 6x8 lumber with custom sizing options available.
• Load Capacity: Supports over 20,000 lbs per footing
• Anchor Bolt Holes: One 1/2" diameter hole for secure mounting. Additional securing with four 1/4" x 2 1/2" zinc-plated lag bolts (not included). Includes a center bolt hole for further anchoring with a 1/2" x 4" lag bolt (not included).

Features:

• Durable Construction: Crafted from 1/4" thick steel, offering superior strength compared to thin stamped metal alternatives.
• Moisture Protection: The 3/4" stand-off base raises the post to prevent moisture accumulation and ensure proper ventilation.
• Custom Options: Available in various sizes and finishes. Custom sizes can be made to fit actual dimensioned lumber.

Additional Information:

• Also Available: Custom finishes and sizes to meet specific project requirements. Contact us for special orders.

This post base is essential for providing a secure and stable foundation for wood posts, making it ideal for both residential and commercial applications.

Made In USA
