Product Description

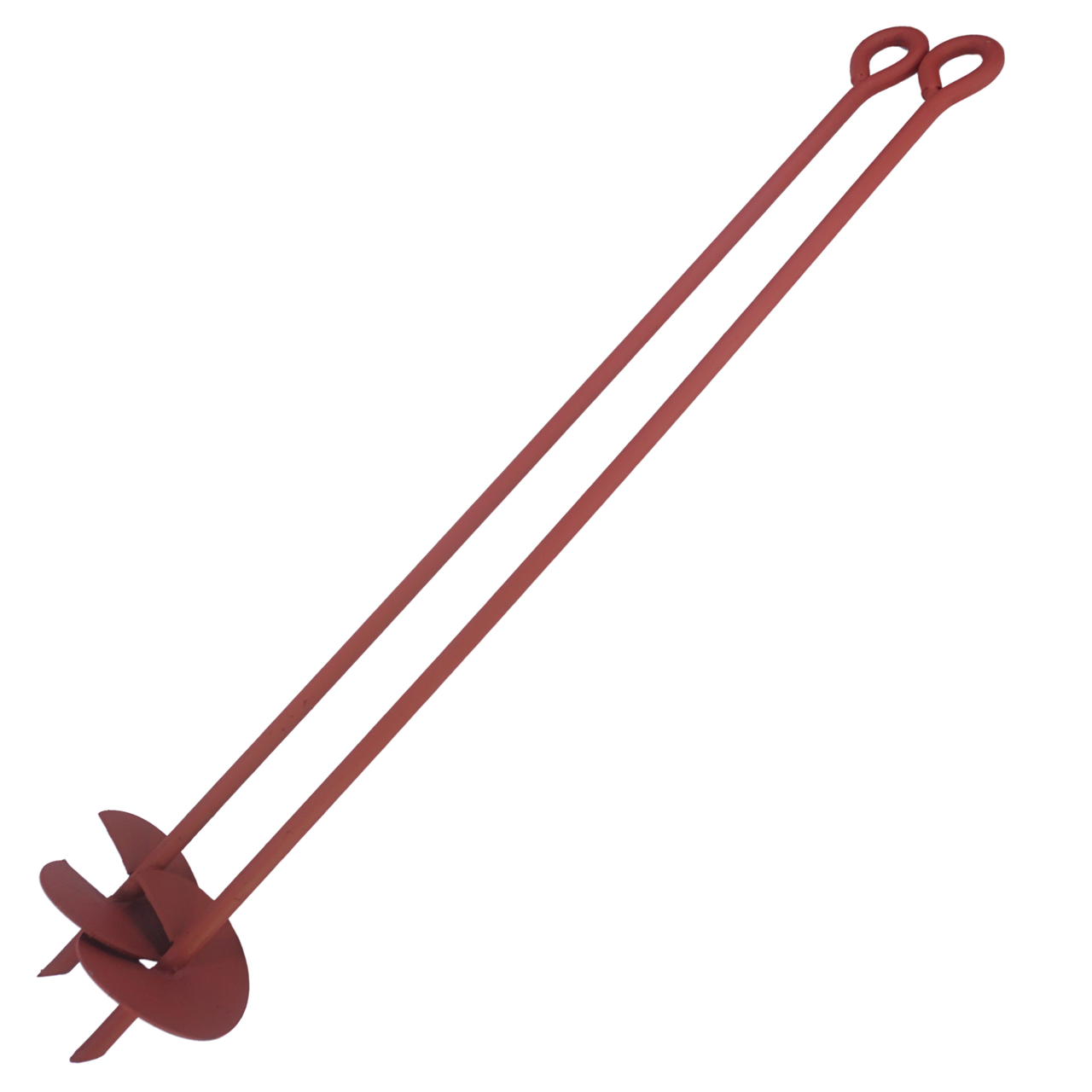

HEAVY DUTY Screw in Anchor 3/4" x 48" w/6" Helix Excellent for thousands of projects; commonly used for securing small planes, vineyard trellises, storage sheds, tents, orchard and nursery trees, swing sets, clothes lines, fences, retaining walls, radio antennas, small windmills, floating docks, and pet restraint. All eye anchors are manufactured from steel that conforms to ASTM A-36 M1020 standards. Holding strength is based on clay soils which are of hard to medium density. The holding strength is reduced in softer less dense soils and sandy soils.  To ensure maximum holding strength, anchor must be installed to full depth with the bottom of eyelet at ground level. Anchor eyelets are always weld closed, eyelets can be left open upon request of the customer.  HEAVY DUTY Screw in Anchor 3/4" x 48" w/6" Helix Anchors  withstand up to 4000 lbs pull-out resistance in firm soils Specifications:

***ON ORDERS OF 15 OR MORE- PLEASE CALL AS SHIPPING LTL TRUCKING MAY BE BE OF LOWER COST***

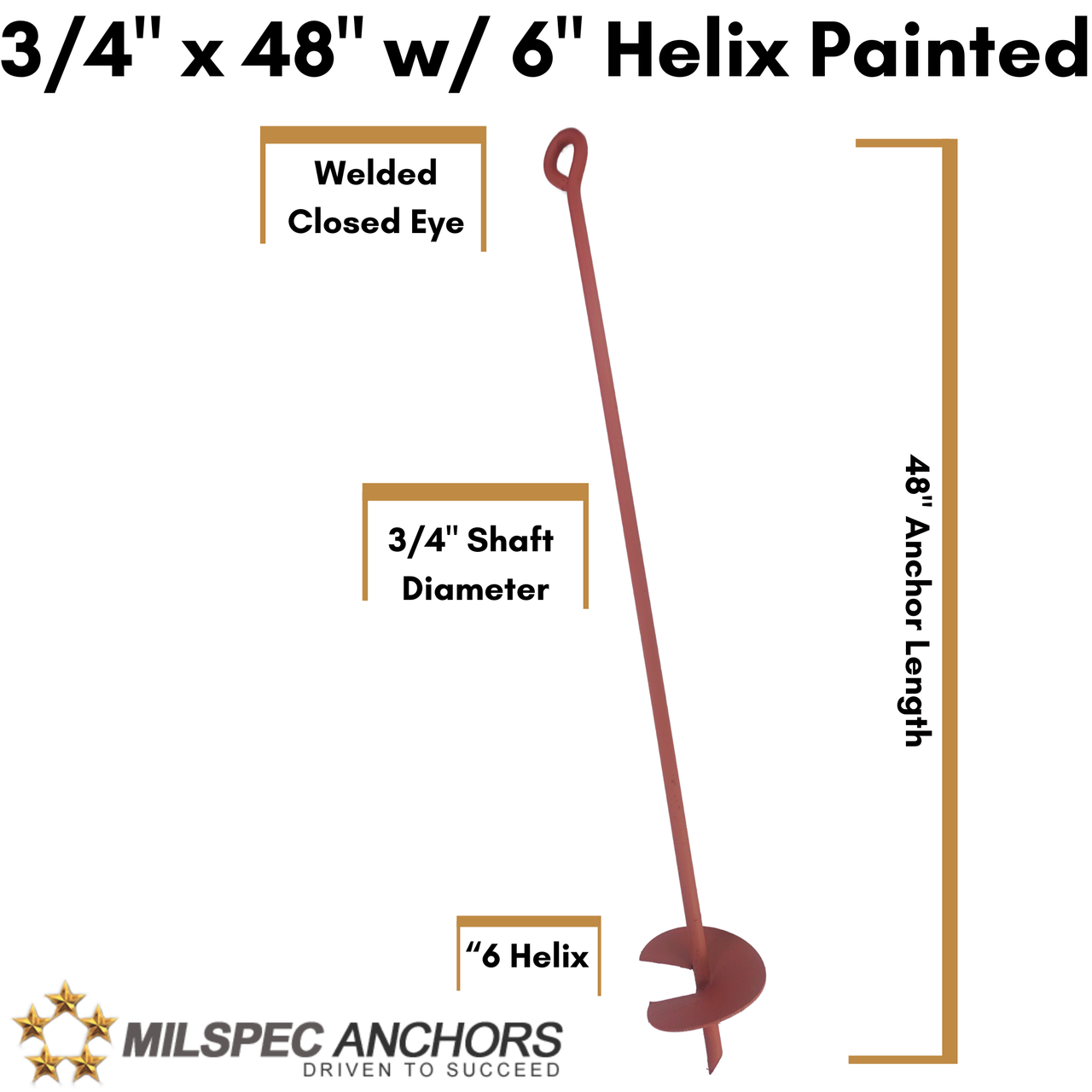

Shaft Diameter: 3/4″

Length: 48″ Long

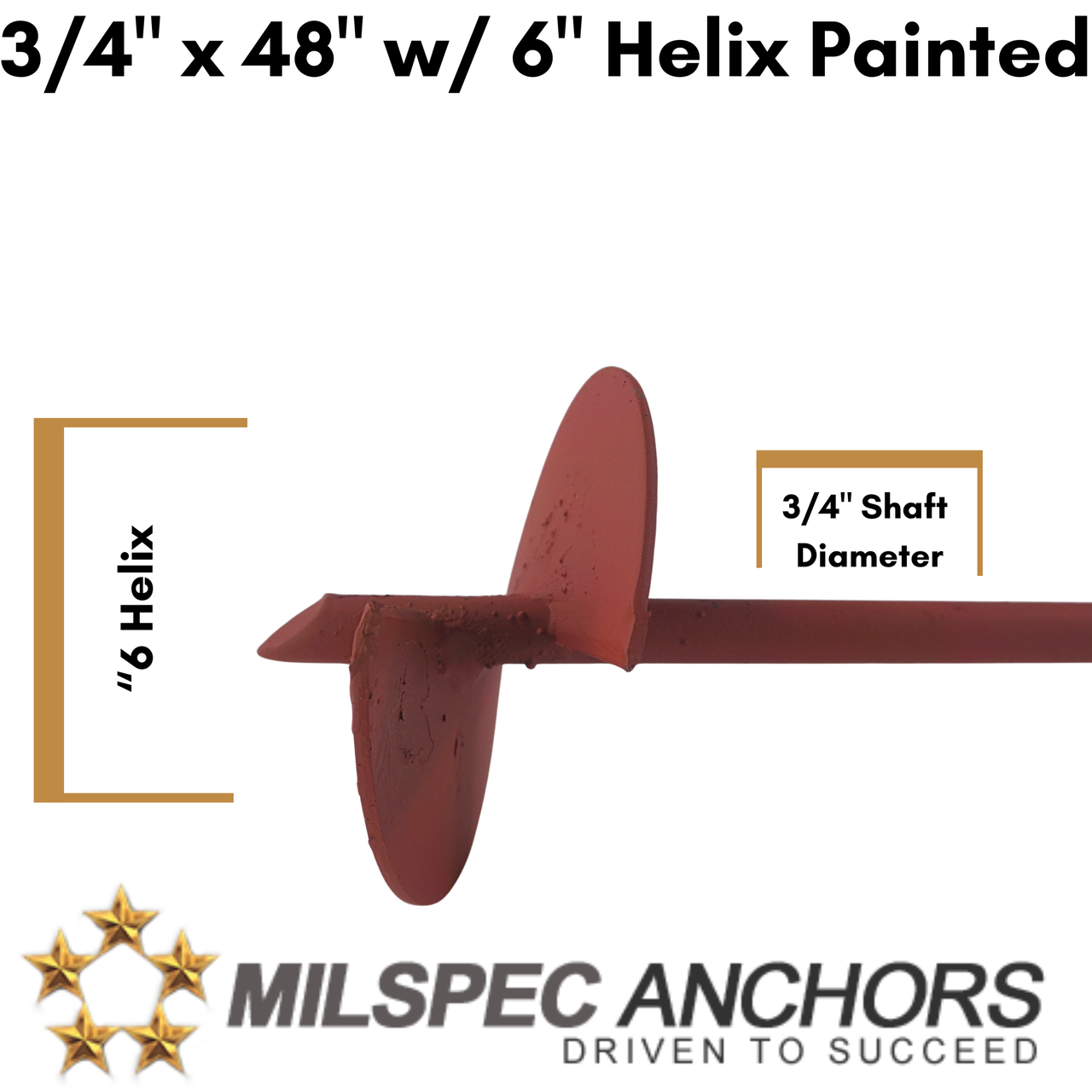

Helix Diameter: 6″ Round

Load capacity: Up to4300 lbs (Dependent on Soil Conditions)

Eye detail: Eye is “Welded Closed” w/ 1 1/2″ Diameter Loop
