Product Description

Ideal for corrosive environments  in medium to soft Soils – “Hot dipped Galvanized Finish” Commonly used for Mooring Boats and docks, securing vineyard trellises, Large  storage sheds, retaining walls, radio antennas, small windmills,  Long Hop runs Holding strength is based on clay soils which are of hard to medium density. The holding strength is reduced in softer less dense soils and sandy soils. To ensure maximum holding strength, anchor must be installed to full depth with the bottom of eyelet at ground level. Can be installed by hand in softer soils with a "installation bar" harder soils may need power installation equipment 12,000 lb+ pull out resistance in Hard Pan soils- less in less dense soils

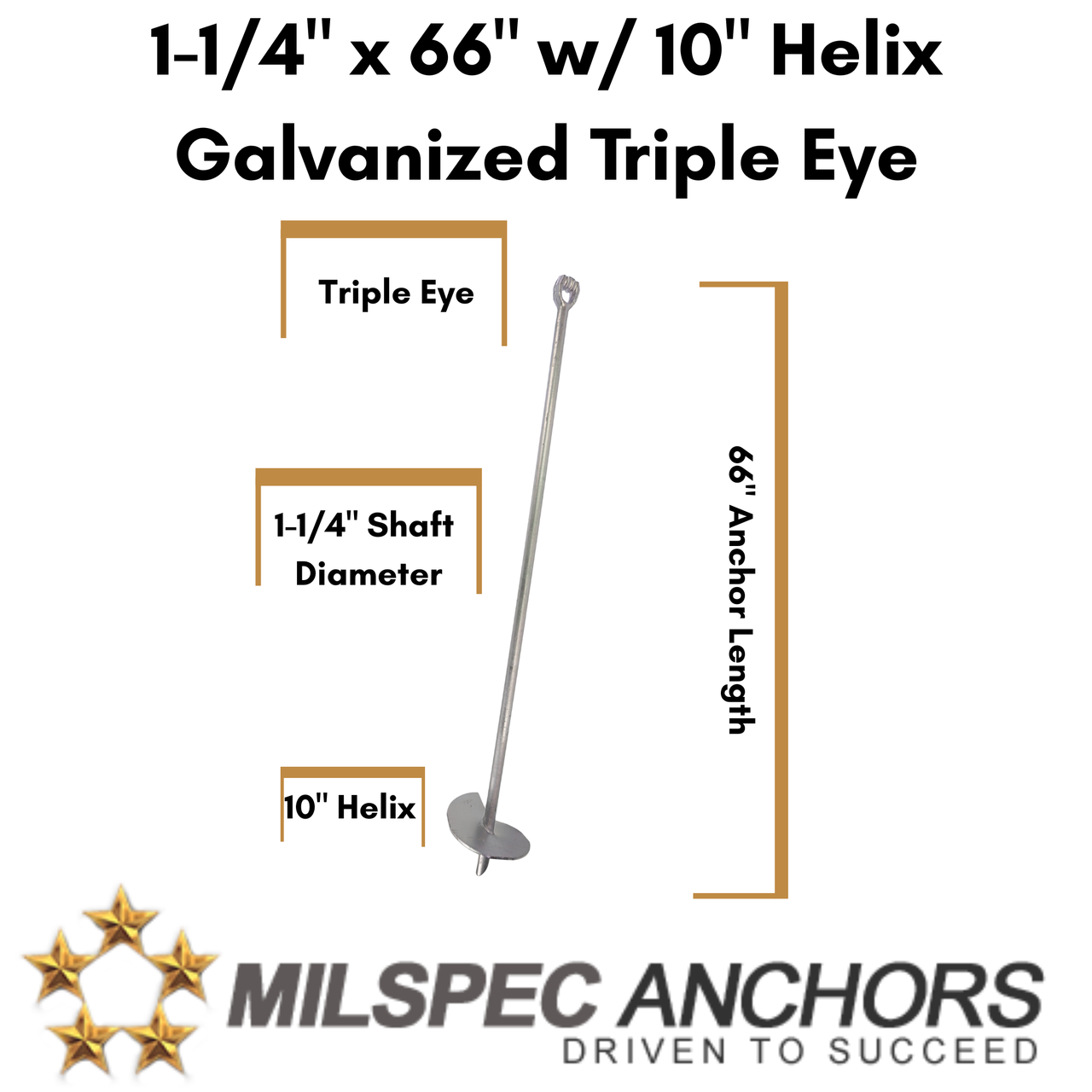

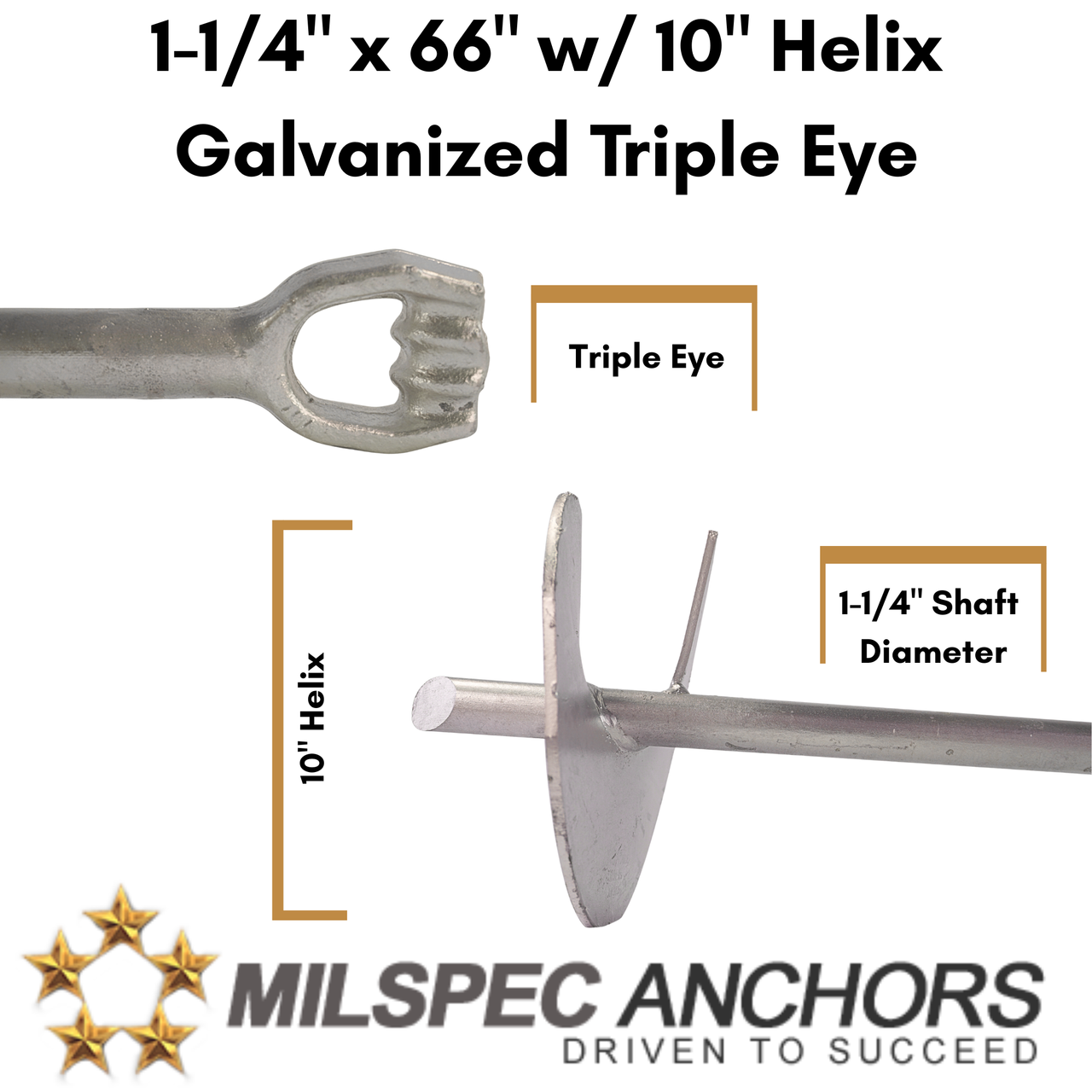

Specifications:

Finish: Hot Dip Galvanized

Shaft Diameter: 11/4″

Helix: Single 10″

ID of Eye: 1 1/2″  Forged

Length: 66"
