Flat Spike Grid- Timber Construction MADE IN USA

Timber Connector- Crossing Flat Timber to Flat Timber

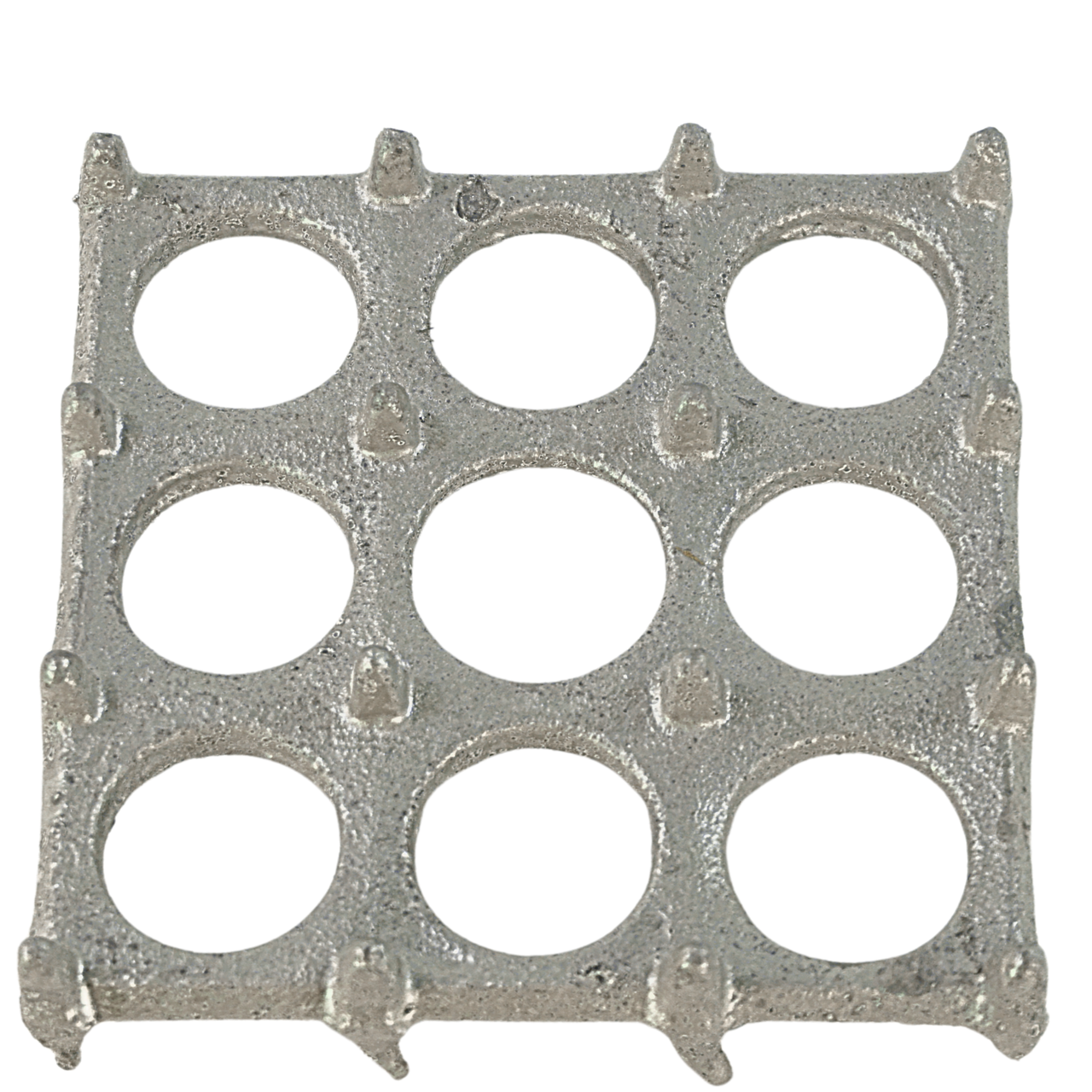

Flat Spike Grid – Engineered for Timber Construction applications and proudly MADE IN THE USA. This Timber Connector is designed specifically for connecting flat timber to flat timber, providing enhanced strength and durability for a wide range of projects.

Constructed from galvanized malleable iron for excellent corrosion resistance, this connector is also available in 356 T6 heat-treated aluminum, offering a lightweight yet durable alternative.

The Flat Spike Grid is ideal for applications such as bridging, barns, buildings, pole line construction, and more. It is designed to improve the strength of flat-to-flat timber connections and is used in conjunction with bolt fasteners to ensure a superior cross-connection.

Specifications:

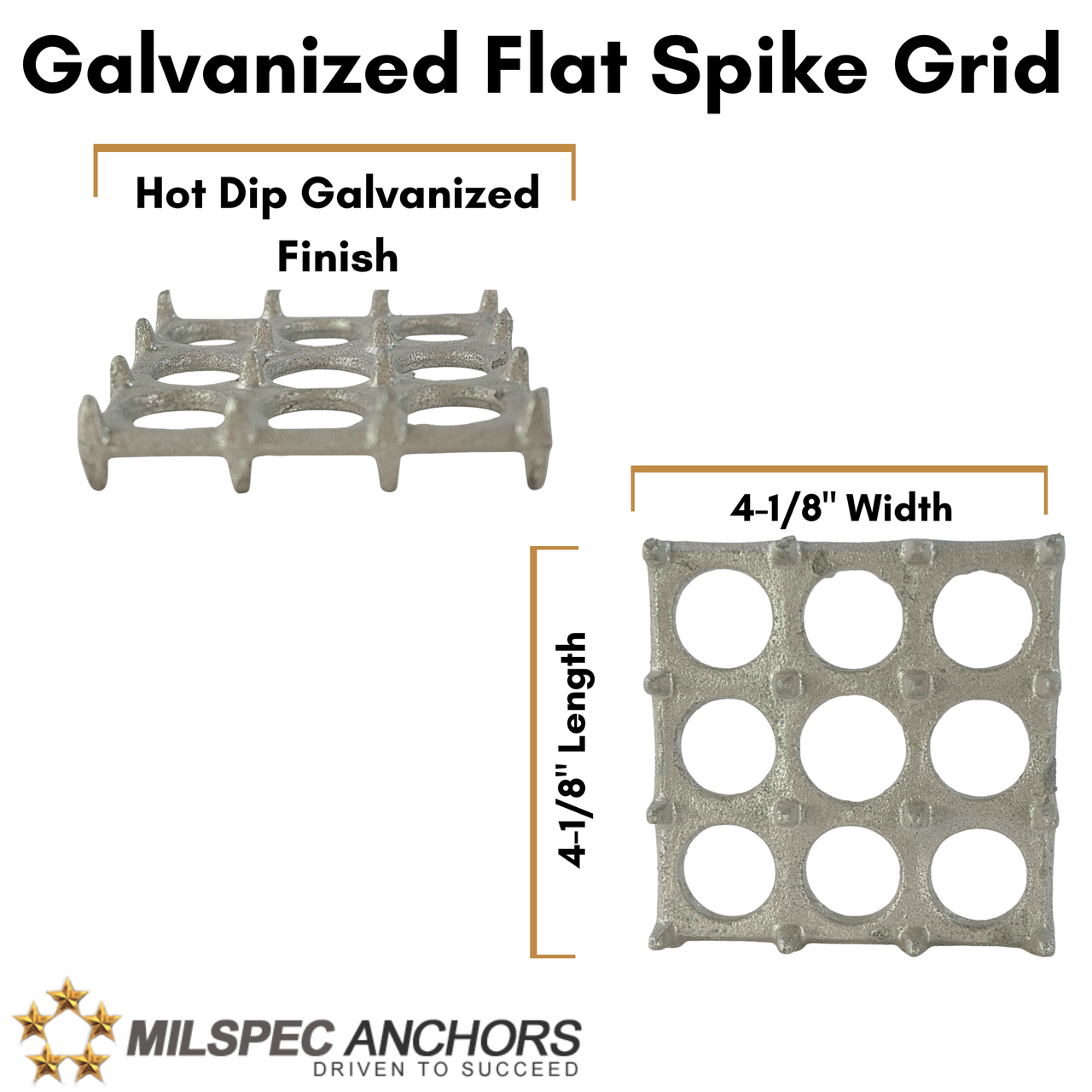

• Dimensions: 4-1/8″ x 4-1/8″ x 1″
• Finish: Hot-Dip Galvanized
• Hardware: Accepts up to(including) a 1" bolt (hardware not included)

MADE IN THE USA

Figure 1-31.—Spike grids and spike-grid joints.. The spike grid is used as shown in figure 1-31. A spike grid may be flat (for joining flat surfaces), single-curved (for joining a flat and a curved surface), or double-curved (for joining two curved surfaces). A spike grid is embedded in the same manner as a toothed ring.
