Product Description

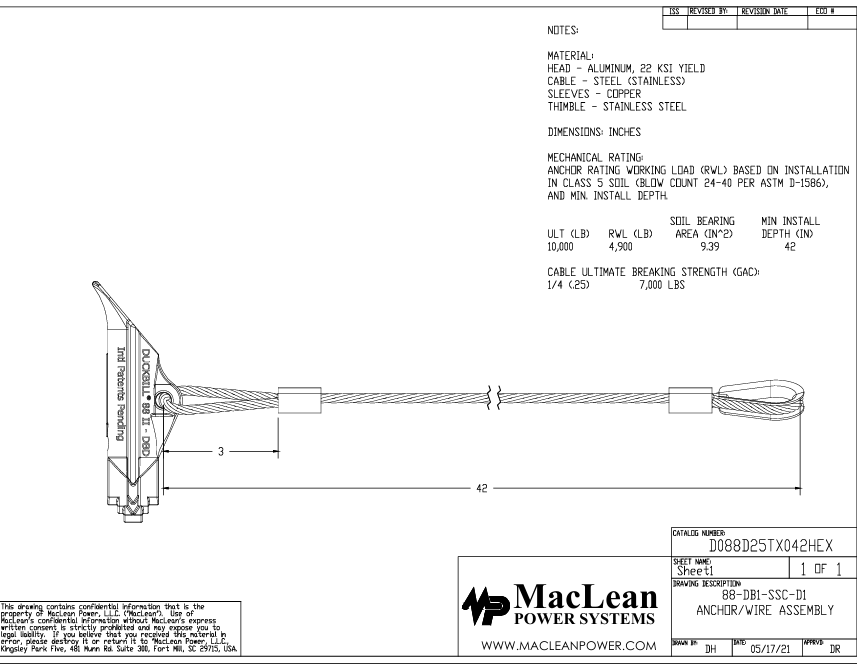

 88-DB1-SSC-DI 1/4" x 42" Ductile Iron Anchor/Wire Assembly

Material:

Head- Aluminum, 22 KSI Yield

Cable- Steel (Stainless)

Sleeves- Copper

Thimble- Steel (Stainless)

Mechanical Rating: Anchor Rating Working Load (RWL) Based On Installation In Class 5 Soil (Blow Count 24-40 Per ASTM D-1586), And Min. Install Depth.

ULT (LBS)

10,000

RWL (LBS)

4,900

Soil Bearing Surface Area

9.39IN^2

Min. Install Depth

42IN

REF NUMBER: 10449-II

Part Number: F830207
