Product Description

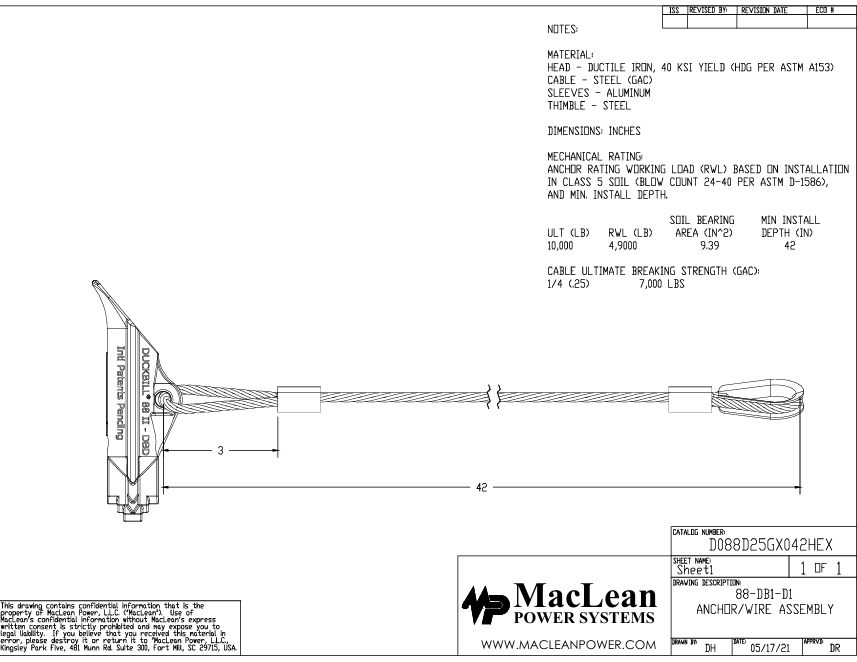

88-DB1-DI 1/4" x 42" Ductile Iron Anchor/Wire Assembly

Material:

Head- Ductile Iron, 40 KSI Yield (HDG Per ASTM A153)

Cable- Steel (GAC)

Sleeves- Aluminum

Thimble- Steel

Mechanical Rating: Anchor Rating Working Load (RWL) Based On Installation In Class 5 Soil (Blow Count 24-40 Per ASTM D-1586), And Min. Install Depth.

ULT (LB)

10,000

RWL (LB)

4,900

Soil Bearing Surface Area

9.39IN^2

Min. Install Depth

42IN

Cable Ultimate Breaking Strength (GAC)

1/4(.25) 7,000 LBS

REF NUMBER:10448-II

Part Number: F830205
