Product Description

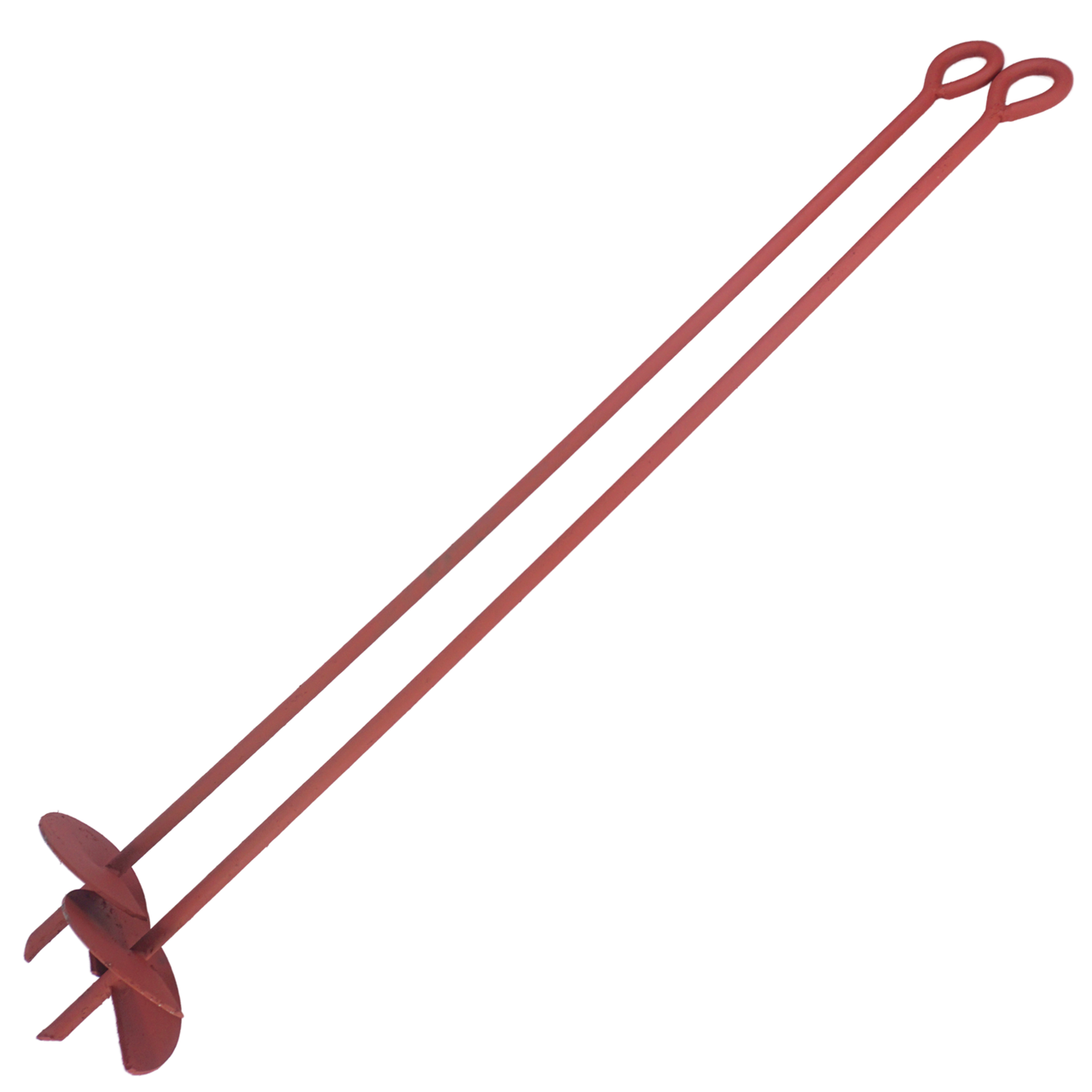

5/8" x 48" Screw-In Earth Anchor with 6" Helix SET OF TWO

Product Description: The 5/8" x 48" Screw-In Earth Anchor with a 6" helix is engineered for reliable and versatile ground anchoring. Crafted from high quality American made steel, this anchor is designed for use in softer soils and is ideal for a variety of applications including vineyards, tank tie-downs, high wind tie-downs, guyed towers, and more. The anchor's robust construction and paint finish provide enhanced durability and resistance to environmental factors.

Key Features:

• Construction: Manufactured from high quality steel for superior strength and longevity.
• Helix Diameter: 6 inches, providing effective soil engagement for stability.
• Shaft Diameter: 5/8 inches, ensuring a strong and secure anchor point.
• Connection Configuration: Features a closed eye for secure attachment.
• Finish: Painted for added protection against corrosion and wear.
• Pull-Out Resistance: Up to 4,250 lbs in hardpan, ensuring reliable performance in challenging conditions.
• Reusability: Designed to be removable and reusable, offering cost-effective solutions for temporary and permanent installations.

Installation: The anchor can be installed manually using a bar or with powered equipment, which is available separately under installation equipment.

Applications:

• Suitable for securing a wide range of structures, including vineyards, tanks, high wind tie-downs, guyed towers, and more.

Specifications:

• Length: 48 inches
• Shaft Diameter: 5/8 inches
• Helix Diameter: 6 inches
• Finish: Paint
• Pull-Out Resistance: Up to 4,250 lbs in hardpan

This high-quality screw-in anchor provides robust anchoring solutions for demanding environments, ensuring stability and security for a wide range of applications.

Made In USA
