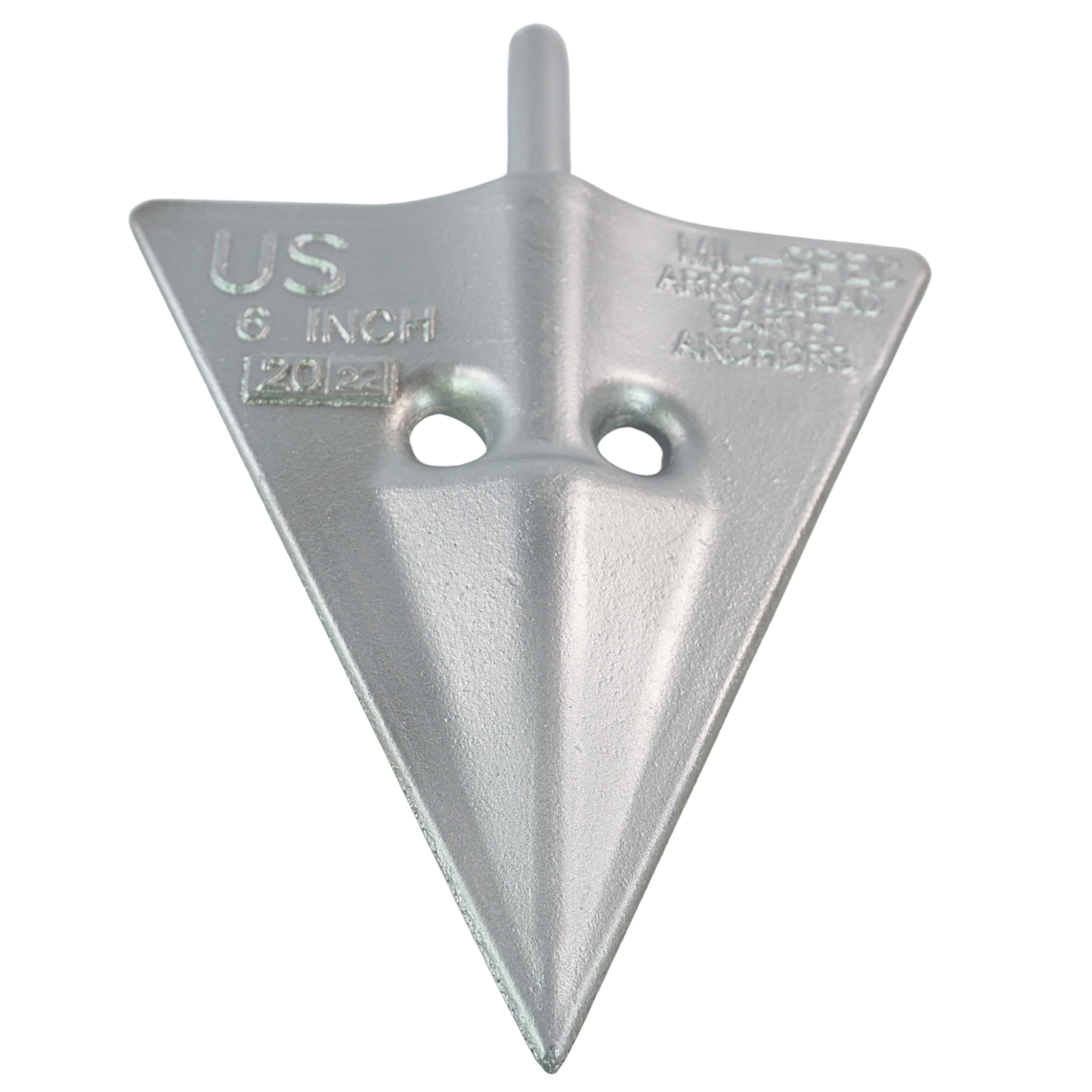

6'' Arrowhead Earth Anchor

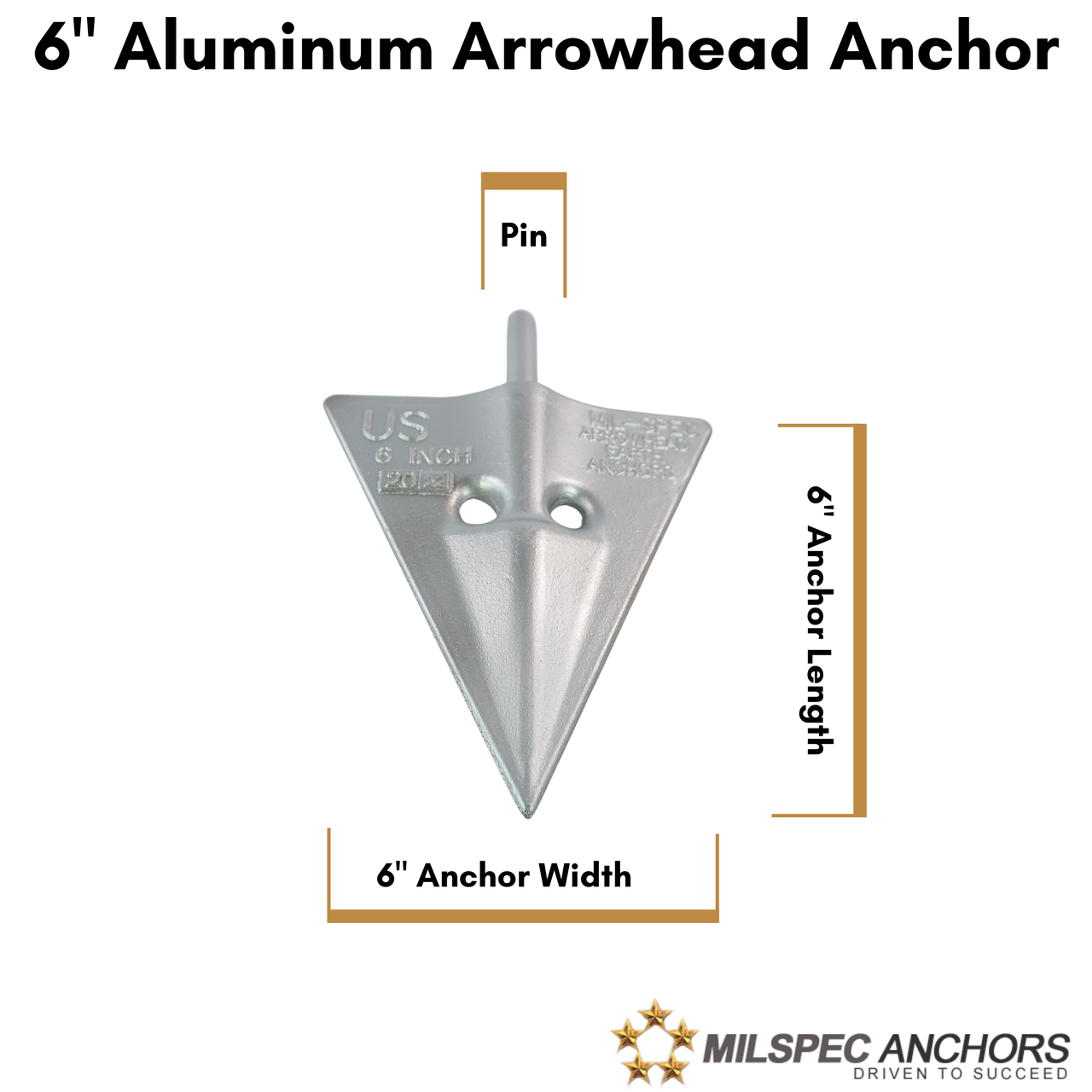

The Arrowhead Ground Anchor is the Ideal choice when Anchoring into stiff Rocky Soils!6” Ground Anchor Assembly Specifications: Anchor assembly: 6″ Ground Anchor Made from 256 T6 heat Treated Aluminum or Malleable Iron Cable Assembly :1/4″ x 42″ Galvanized Cable Assembly with thimble end Pull out resistance :Up to 5000 LBS in Hard Pan soil These arrowhead anchors are designed after our highly successful Mil-Spec anchors which have been proven and tested out in the field for over 40 years. The anchors come with an optional galvanized aircraft cable assembly. Mil-Spec Earth Anchors combine both ease of installation and dependability at a very affordable price.
Perfect for hard, rocky soils.
Posted by Ken Beals on Aug 9th 2016
I use these for guy anchors on ham radio towers. My soil is very hard mixed with large rocks (we call them cobble out here). So far I've installed 12 of these anchors and only had 1 that must have hit something solid and stopped about 2 feet in. Abandoned that one, moved 6 inches and the new one went right in. I drive the anchors using a 65 lb electric jack hammer. Setup, drive, removing the drive bar takes one person just 20 minutes.
One tower has been up over 2 years and the guy cable tension has not changed at all, so the anchors are dead solid.
Using these beats digging and pouring concrete by a mile.
